Thermochemistry: The Journey of Energy

The Particle Dance: From Ice to Steam

The Thought Experiment: Imagine a single ice cube in a sealed glass beaker. We place it on a hot plate and slowly turn the dial. Where does that heat go? It doesn't just disappear; it transforms the "dance" of the molecules.

1. The Solid Phase: Vibrational Energy

In a solid, molecules are locked in a rigid lattice. They aren't moving from place to place, but they aren't still either.

Vibrational Kinetic Energy: As we add heat, the molecules jiggle faster in their fixed positions. Think of them as being connected by stiff springs.
The Breaking Point: Eventually, the vibrations become so violent that the "springs" (intermolecular forces) can no longer hold the lattice together.

2. The Liquid Phase: Rotational & Limited Translational Energy

Once the melting point is reached, the energy input goes into overcoming the attractive forces rather than raising the temperature (Latent Heat).

Translational Energy: Particles now have enough energy to slide past one another. They can move from point A to point B within the volume of the liquid.
Rotational Energy: Particles begin to tumble and spin, further disrupting any organized structure.

3. The Gaseous Phase: Maximum Translation

As we continue heating, we reach the boiling point. Here, the energy added is used to completely sever the ties between molecules.

In a gas, the energy is almost entirely Translational.
Molecules fly in straight lines at high velocities until they collide with the walls of their container (creating pressure).

Summary of Molecular Motion

Phase	Primary Motion	Clinical Connection
Solid	Vibrational	Structural integrity of bone/implants.
Liquid	Vibrational, Rotational, Limited Translational	Fluidity of blood and cytoplasm; diffusion.
Gas	High-speed Translational	Anesthetic gases, oxygen/CO2 exchange in alveoli.

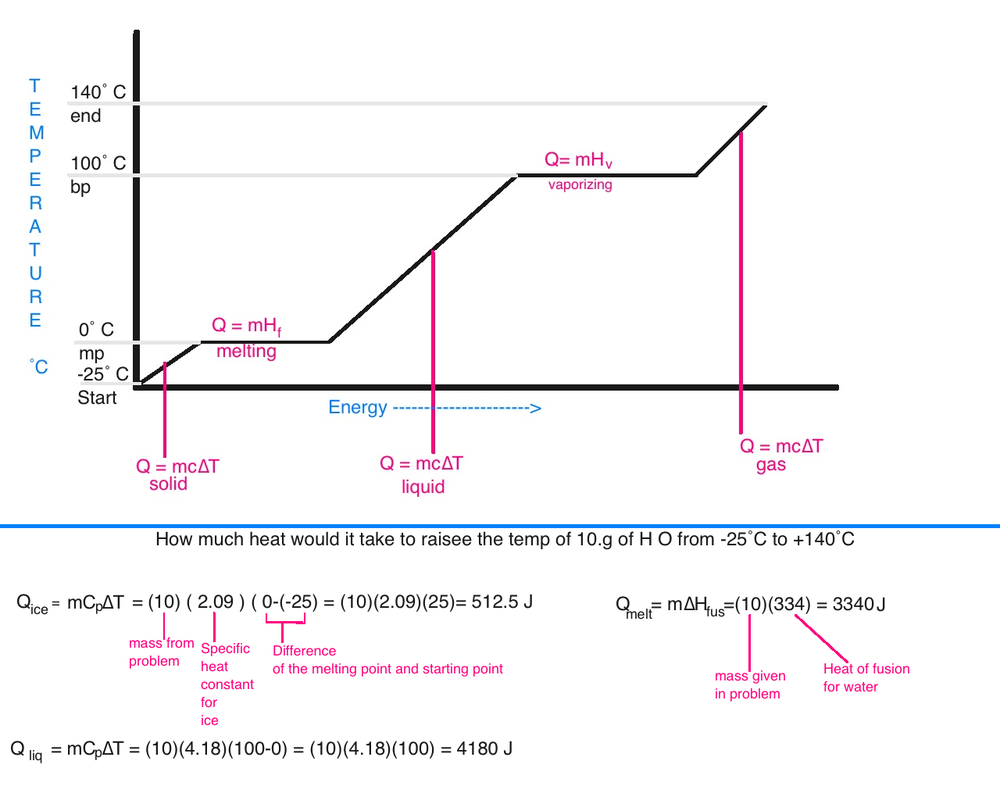

Visualizing Energy: The Heating Curve

A plot of Temperature (T) vs. Energy Transferred (q) reveals a striking reality: adding heat doesn't always make a substance hotter.

Understanding the Slopes and Plateaus

1. The Slopes (Temperature is Rising)

On the diagonal sections of the graph, the energy added is increasing the Kinetic Energy of the particles.

In Solids: Energy goes into faster vibrations.
In Liquids/Gases: Energy goes into faster translation (speed).
Clinical Note: This is what we measure with a thermometer.

2. The Plateaus (Temperature is Constant)

These horizontal lines are the "Phase Changes." Even though we are adding heat, the temperature stays exactly the same. Why?

The energy is being used as Potential Energy to break the intermolecular "handcuffs" holding the particles together.
Heat of Fusion (H_fus): The energy required to move from vibration-only (solid) to sliding motion (liquid).
Heat of Vaporization (H_vap): The energy required to move from liquid to total translational freedom (gas).

Why the Gas Plateau is Longer

You’ll notice on the plot that the "Boiling" line is much longer than the "Melting" line. This is because it takes significantly more energy to completely separate molecules into a gas than it does to simply let them slide past each other as a liquid.

Graph Feature	Molecular Action	Energy Type Involved
Diagonal Line	Particles move faster (vibrating or flying).	Kinetic Energy ($\Delta T > 0$)
Horizontal Line	Particles are pulling apart/breaking bonds.	Potential Energy ($\Delta T = 0$)
