Kinetic versus Thermodynamic Control: HBr Addition to 1,3-Butadiene

Kinetic vs. Thermodynamic Control: HBr Addition to 1,3-Butadiene

When 1,3-butadiene reacts with HBr, the reaction proceeds through a common, resonance-stabilized allylic carbocation intermediate. From this single intermediate, two different products can form: the 1,2-addition product and the 1,4-addition product.

📷 [IMAGE PLACEHOLDER: Chemical Reaction Mechanism]

Show 1,3-butadiene reacting with HBr to form the allylic carbocation intermediate and its two resonance structures.

💡 The First Principles Lesson: Barriers vs. Rates

To understand how a system chooses its destination, we have to look at the Reaction Energy Diagram. In any chemical step, the height of the activation energy barrier ($\Delta G^\ddagger$) completely dictates the rate constant ($k$) for that step:

🟢 Small Barrier = Large Rate Constant ($k$): The reaction happens fast.
🔴 Large Barrier = Small Rate Constant ($k$): The reaction happens slow.

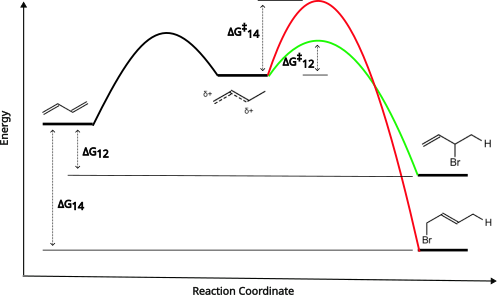

📊 [IMAGE PLACEHOLDER: Reaction Energy Diagram]

Show a single intermediate splitting into a lower-barrier/higher-energy product (1,2) and a higher-barrier/lower-energy product (1,4).

1. The Kinetic Product (1,2-addition)

Forms faster because it has a lower activation energy barrier. Because the barrier is small, its forward rate constant is large. However, the product itself is less stable due to the less substituted alkene.

2. The Thermodynamic Product (1,4-addition)

Is more stable because it features a more substituted alkene, sitting lower on the energy diagram. However, reaching it requires crossing a larger activation energy barrier, giving it a smaller forward rate constant.

🛠️ The Sandbox Setup

Model this system in the simulator below by matching the chemical terms to these variables:

D = 1,3-butadiene (Diene) | I = Allylic Carbocation Intermediate | P12 = 1,2-product | P14 = 1,4-product

Part A: Low Temperature (Irreversible / Kinetic Control)

Under cold conditions (e.g., $-80^\circ\text{C}$), molecules don't have enough thermal energy to climb backward over the energy barriers. Once a product forms, it is stuck. Note that the rate constant to form P12 is much larger ($0.8$) than P14 ($0.2$) because of its lower barrier.

Clear Step 1 in the simulator and paste the network:
```
D -> I, 1.0
I -> P12, 0.8
I -> P14, 0.2
```
In Step 2, set the initial concentration of D to 1.0 (others to 0).
Set End Time to 10 and click RUN SIMULATION.

👉 Analyze the Graph: When the starting material D is entirely consumed, which product is dominant? Why does the system favor this product when it can't go backward?

Part B: High Temperature (Reversible / Thermodynamic Control)

Under warm conditions (e.g., $40^\circ\text{C}$), molecules can easily climb backwards. Because P12 sits higher in energy, the barrier to go backward (P12 -> I) is much smaller than the massive uphill climb from the stable P14 (P14 -> I).

Small reverse barrier (P12 -> I) $\rightarrow$ Large reverse rate constant (0.6)
Huge reverse barrier (P14 -> I) $\rightarrow$ Small reverse rate constant (0.05)

Update your reaction network in Step 1 to add the reversible pathways:
```
D -> I, 1.0
I -> P12, 0.8
P12 -> I, 0.6
I -> P14, 0.2
P14 -> I, 0.05
```
Ensure initial D is still 1.0.
Set End Time to 25 and click RUN SIMULATION.

👉 Analyze the Graph: Which product peaks early in the simulation? As time reaches the end of the timeline, which product ultimately wins out, and why?

🧠 Challenge Questions for Students

The Trajectory Shift: In Part B, you should see the concentration of P12 rise rapidly at first, hit a maximum, and then begin to decrease as P14 continuously climbs. Using your first-principles understanding of reversible rates and the energy diagram, explain how P12 is being converted into P14 over time without a direct step connecting them.
Rate Plots: Switch your view to the Reaction Rates plot for Part B. At what approximate time stamp does the net rate of P12 production cross zero and become negative? What physical process in the reaction flask does a negative rate value represent?
